RTBC Pipe Sensing T'Stat
	Quantity in Basket: none Code: 389600 Price: $459.00 Shipping Weight: 9.00 pounds
	Quantity:

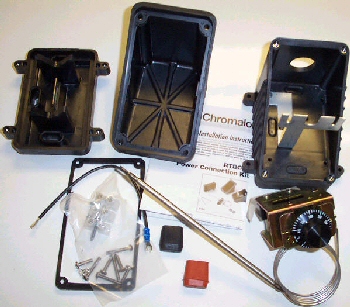

DL Series pipewall-sensing thermostat with Microswitch®. The RTBC is a line-sensing thermostat which is generally used for process temperature maintenance applications in ordinary (non-hazardous) areas. The thermostat is mounted within the enclosure and the capillary is brought out through one of the openings in the bottom of the box. This design provides extra protection for the capillary, especially when the control is mounted on a pipe, for heat tracing applications. The three foot long stainless steel capillary provides good ?exibility in mounting locations. Temp. Setpoint Range — 0 to 400°F (-18 to 200°C) for RTBC. Cable grommets provide water-tight seal between base, box, cable and capillary. Use GRSR with all self-regulating cables. Use GRCW with constant wattage cables. One of each grommet included in kit. Part Number is RTBC and PCN is 389600. WATTAGECONSTANT View Product Datasheet (pdf format)  Click here to return to the full list of Constant Wattage Heating Cable.
