OPERATOR CONTROL STATIONS - "X" SERIES OCS
CONTROLLERS
Horner LX Touchscreen OCS
New, Low-cost, High-Performance Touchscreens
|
The LX280 monochrome
and LX300 STN color models are the
newest, low-cost touchscreens added to
the extensive OCS product line. OCS
(Operator Control Station) is a robust,
reliable control product that combines a
traditional controller.programmed in
ladder logic.display, I/O interface and
networking into an integrated,
all-in-one unit using a single software
package.
One of our fastest OCS, the LX models
have a 0.20mS/K typical scan rate, and a
large memory capacity.supporting logic
programs up to 128K logic and 32K of
battery-backed registers. Best of all,
the LX models offer a performance level
previously unattained by competitive
products in its price class (starting
under $800).
Click here for the LX Product Sheet
Bright Screen Display and
Compact Size
Using STN LCD technology, the LX models
offer integrated, bright displays. The
LX280 screen features eight shades of
gray, while the LX300 supports 16
different colors. Both models provide
far more visual readability than
competing low-cost blue screen and STN
color LCDs. Plus, the LX280 and LX300
are compact, measuring 7" W x 5.5" H x
2" D. This gives the added advantage of
being a viable, low-cost solution for
machines with small panel areas.
High Speed CsCAN Network for I/O
I/O connects to the LX models using an
onboard CsCAN port...CsCAN is a
reliable, high-speed network for I/O and
control. Users have a choice of two
different I/O products with the LX. They
can opt for SmartStixTM I/O (which is
DIN-rail mounted, terminal block style
I/O), or SmartStackTM I/O (which
"stacks" on bases). Or, use both types
of I/O.and choose from over 70 I/O
modules. In addition, the LX can address
an impressive 2048 digital in, 2048
digital out, 512 analog in and 512
analog out I/O points.
I/O Options: LX controllers can support
both SmartStix I/O (DIN-rail mounted) or
SmartStack I/O (stacked on bases).
Supports 4096 digital and 1024 analog
points. |
Connectivity
 |
| Part
Number |
Description |
| HELX280C100 |
5.7 1/4 VGA STN Mono LX
Operator Control Station with
CsCAN network |
| HELX280 |
5.7 1/4 VGA STN Mono LX
Operator Control Station without
CsCAN network |
| HELX300C100 |
5.7 1/4 VGA STN Color LX
Operator Control Station with
CsCAN network |
| HELX300 |
5.7 1/4 VGA STN Color LX
Operator Control Station without
CsCAN network |
| HE800RCS116 |
CsCAN Network Expansion Base
for SmartStack I/O (metal cases
only) |
|
Connections
|

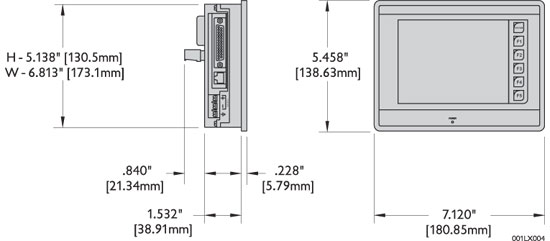

Dimensions
 |
Specifications
 |
|
|
